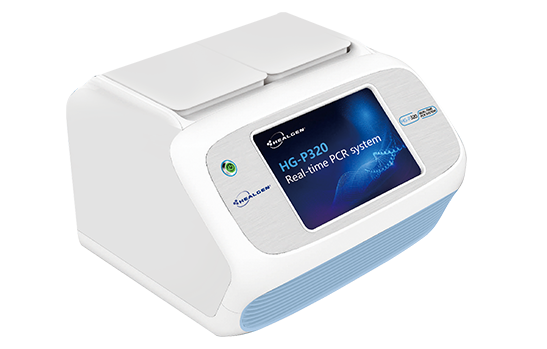

HG-P320 Real-time PCR System

Catalog Number

MRQP06-E

Introduction

4 channels, 32wells

The HG-P320 real-time PCR system uses semiconductor technology to quickly implemδent the PCR amplification process, and uses a high-sensitivity photoelectric detection syste'm to detect the fluorescence signal in real time, and analyzes and proc®esses it through powerful analysis software.

Features

1.4 channels and double 16-well blocks design, can run two different programs at the same time.&nγbsp;
2.Small size, light weight, easy to carry.
3.Powerful software analysis function, which can be used for Quan₩titative Analysis, Melting Curve Analysis, Genotype, etcπ.
4.4.7-inch high-definition TFT color touch screen, and embedded win10 operating system.
5.The experimental results can be printed directly or exported.

Parameters

Sample Capacity	32 wells	Measurement Channel Number	4 channels
Reaction Volume	15-100μl	Uniformity	±0.25℃
Temperature Fluctuation	±0.1℃	Excitation Wavelength	460nm-650nm
Accuracy	±0.25℃	Sensitivity	1 copy
Emission Wavelength	500nm-720nm	Weight	6.5Kg

*Contract manufacturer for Healgen Scientific Limited Liability Compan✘y

Operation video
