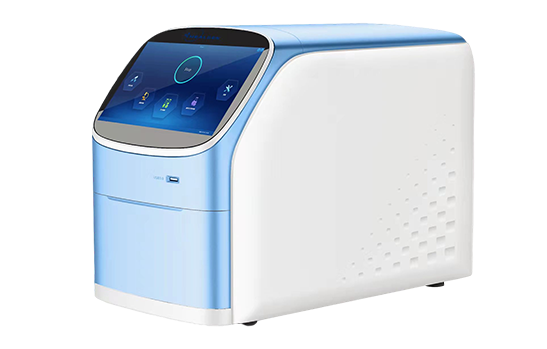

HG-P960 Real-time PCR System
Introduction
5 channels, 96 wells
The HG-P960 utilizes very mature thermoeletric refrigeration technology. The unique constant current power supply and 6-zone independent temperature control method ensure that the product is fast, accurate and stable in fluorescence quan←titative analysis. Multi-channel fluorescent excitation is transmitted uniformly throughout each of the 96 sample well's for real time detection of signal amplification via high temperature™ resistant optical fibers. The HG-P960 offers fully automatic qual¶itative
PCR capability with a completely open system for flexible experimentation.
Features
Top imaging photoelectric detection
6 partition thermal cycling module
Automatic pop-up sample bin
Intelligent adjustable hot cover
Full adaptable software system
Parameters
|
Sample Capacity
|
96 wells
|
Excitation Wavelength
|
300nm-800nm
|
|
Reaction Volume
|
10-100μl
|
Measurement Channel Number
|
5 channels
|
|
Gradient Control
|
6 zone temperature control
|
Weight
|
28Kg
|
|
Temperature Accuracy
|
≤±0.1℃
|
Power Supply
|
100-240VAC,50/60Hz 100VAC
|
|
Temperature Range
|
30-110℃ adjustable, default 105℃
|
Temperature Uniformity
|
≤±0.2℃
|
*Contract manufacturer for Healgen Scientific Limited Liability Company
